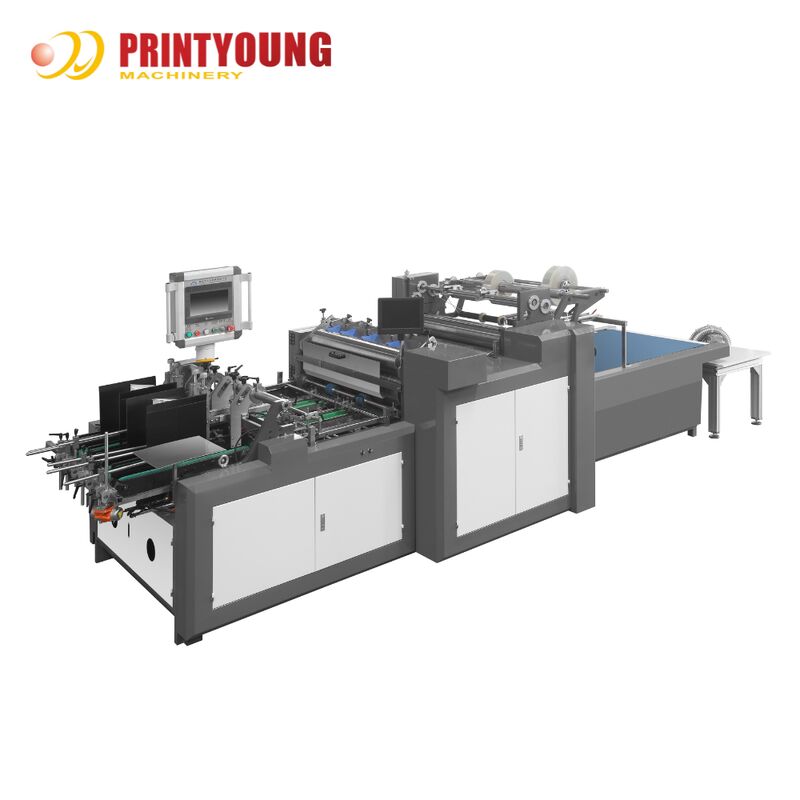

TC-1080B Fully Automatic Paper Box Double Channel Window Patching Machine Motor Engine 380V High-Capacity 40000 Pieces/Hour

TC-1080B Fully Automatic Paper Box Double Channel Window Patching Machine Motor Engine 380V High-Capacity 40000 Pieces/Hour
TC-1080B Fully Automatic Paper Box Double Channel Window Patching Machine Motor Engine 380V High-Capacity 40000 Pieces/Hour TC-1080B Fully Automatic Paper Box Double Channel Window Patching Machine Motor Engine 380V High-Capacity 40000 Pieces/Hour TC-1080B Fully Automatic Paper Box Double Channel Window Patching Machine Motor Engine 380V High-Capacity 40000 Pieces/Hour TC-1080B Fully Automatic Paper Box Double Channel Window Patching Machine Motor Engine 380V High-Capacity 40000 Pieces/Hour TC-1080B Fully Automatic Paper Box Double Channel Window Patching Machine Motor Engine 380V High-Capacity 40000 Pieces/Hour
बुनियादी जानकारी
उत्पत्ति के प्लेस: चीन
ब्रांड नाम: PRINTYOUNG
प्रमाणन: CE
मॉडल संख्या: टीसी-1080बी
न्यूनतम आदेश मात्रा: 1 सेट
मूल्य: USD 43000 Set
प्रसव के समय: 30 कार्य दिवस
भुगतान शर्तें: एल/सी, टी/टी
आपूर्ति की क्षमता: प्रति माह 30 सेट
अब से संपर्क करें
कार्डबोर्ड का वजन: 200 ~ 1000 ग्राम क्षमता: 40000 टुकड़े/घंटा
फिल्म की मोटाई: 0.05 ~ 0.25 मिमी अधिकतम कार्डबोर्ड आकार: 650*1050 मिमी
<i>Min.</i> <b>न्यूनतम.</b> <i>Cardboard Size</i> <b>कार्डबोर्ड का आकार</b>: 80 * 80 मिमी <i>Max.</i> <b>अधिकतम.</b> <i>window size</i> <b>खिड़की का आकार</b>: 400 * 500 मिमी
<i>Min.</i> <b>न्यूनतम.</b> <i>window size</i> <b>खिड़की का आकार</b>: 30 * 50 मिमी कुल भार: 9 किलोवाट

TC-1080B Fully Automatic Paper Box Double Channel Window Patching Machine Motor Engine 380V High-Capacity 40000 Pieces/Hour 0

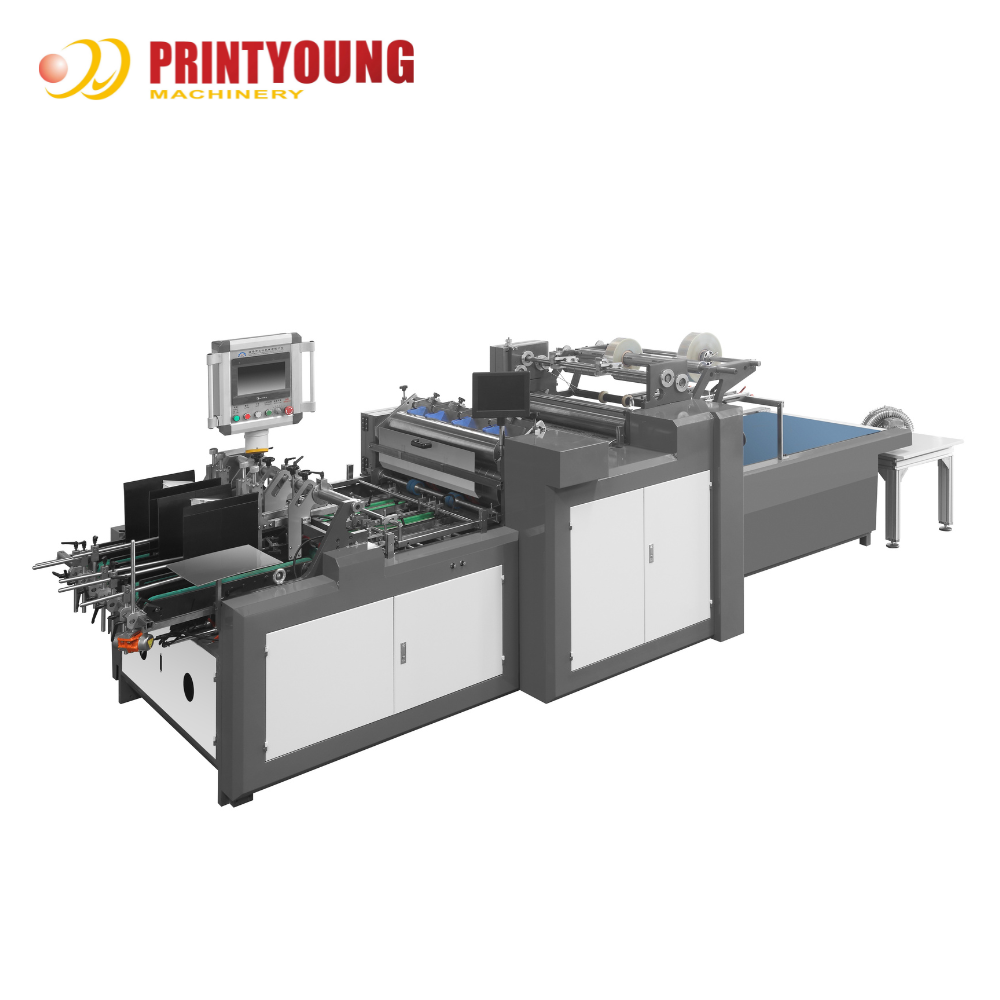

TC-1080B Automatic Window Patching Machine
TC-1080B Fully Automatic Paper Box Double Channel Window Patching Machine Motor Engine 380V High-Capacity 40000 Pieces/Hour 1
Features
Full automatic window patching machine is used for patching window by film on paper.It can accept PP film,PET film,PVC film and so on.Its max capacity is 17000 pieces for one hour.It can produce tissue boxes,gift boxes,toy boxes,shirt boxes,milk cartons and other window boxes.
Technical Parameters
Model
TC-1080B
Cardboard Weight
200 ~ 1000 gram
Capacity
40000 pieces/hour
Size Range of Cardboard
Single Line
Min. 80 * 80 mm , Max. 650 * 1050 mm
Double Line
Min. 80 * 80 mm , Max. 650 * 400 mm
Size Range of Window
Single Line
Min. 55 * 30 mm , Max. 400 * 500 mm
Double Line
Min. 30 * 50 mm , Max. 400 * 200 mm
Film Thickness
0.05 ~ 0.25 mm
Connected Load
9 kw
Weight
3200 kg
Dimensions
6500 * 2000 * 2000 mm
TC-1080B Fully Automatic Paper Box Double Channel Window Patching Machine Motor Engine 380V High-Capacity 40000 Pieces/Hour 2TC-1080B Fully Automatic Paper Box Double Channel Window Patching Machine Motor Engine 380V High-Capacity 40000 Pieces/Hour 3
Configuration
TC-1080B Fully Automatic Paper Box Double Channel Window Patching Machine Motor Engine 380V High-Capacity 40000 Pieces/Hour 4TC-1080B Fully Automatic Paper Box Double Channel Window Patching Machine Motor Engine 380V High-Capacity 40000 Pieces/Hour 5

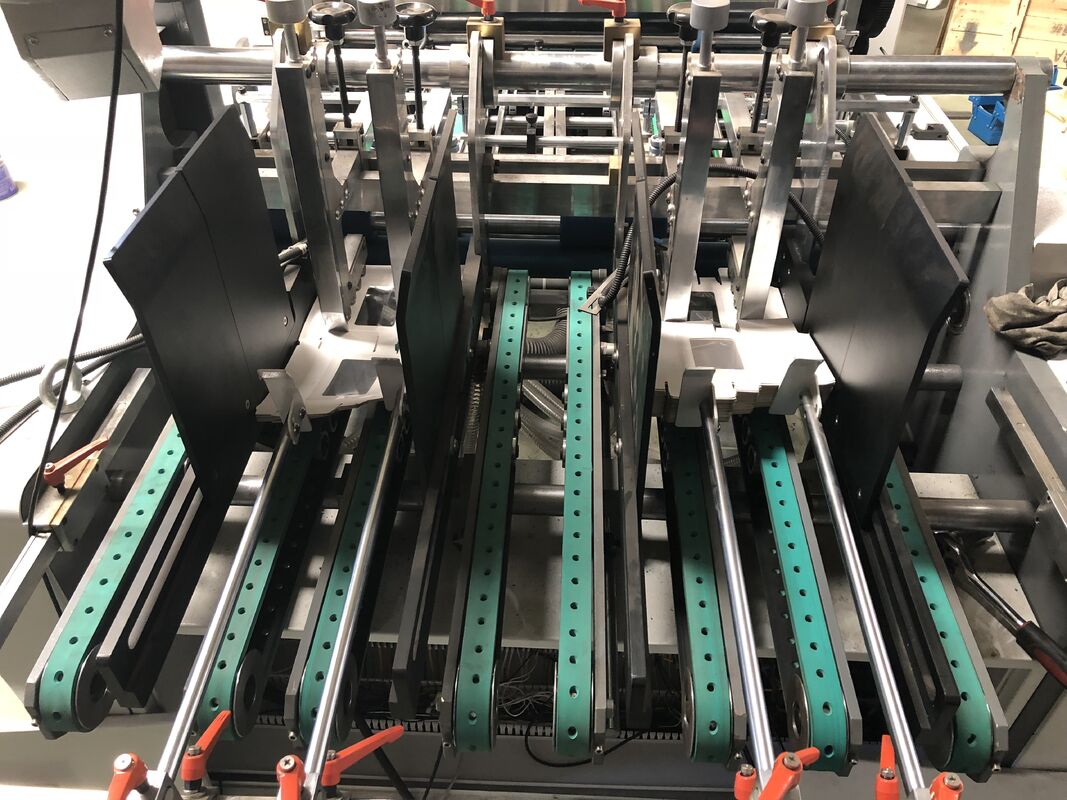

The paper feeder is controlled by two sets of servo motor,the belt is from NITTA JAPAN. No-stop feeding paper,no overlapping paper or missing paper.

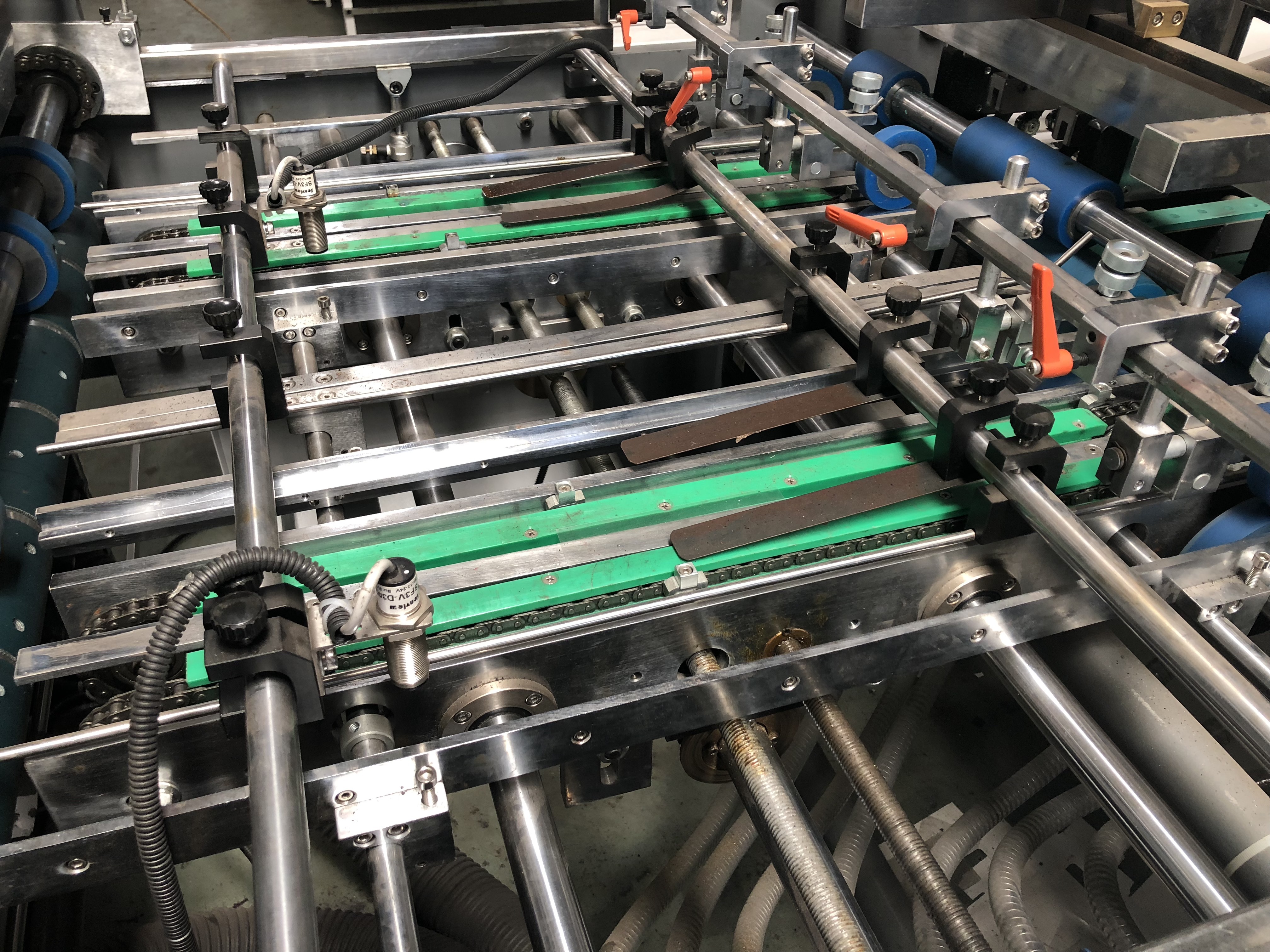

The paper moving system adopt pushing chain and air sucking belt.They have positioning function,insure the paper comes same place in same time.
TC-1080B Fully Automatic Paper Box Double Channel Window Patching Machine Motor Engine 380V High-Capacity 40000 Pieces/Hour 6TC-1080B Fully Automatic Paper Box Double Channel Window Patching Machine Motor Engine 380V High-Capacity 40000 Pieces/Hour 7

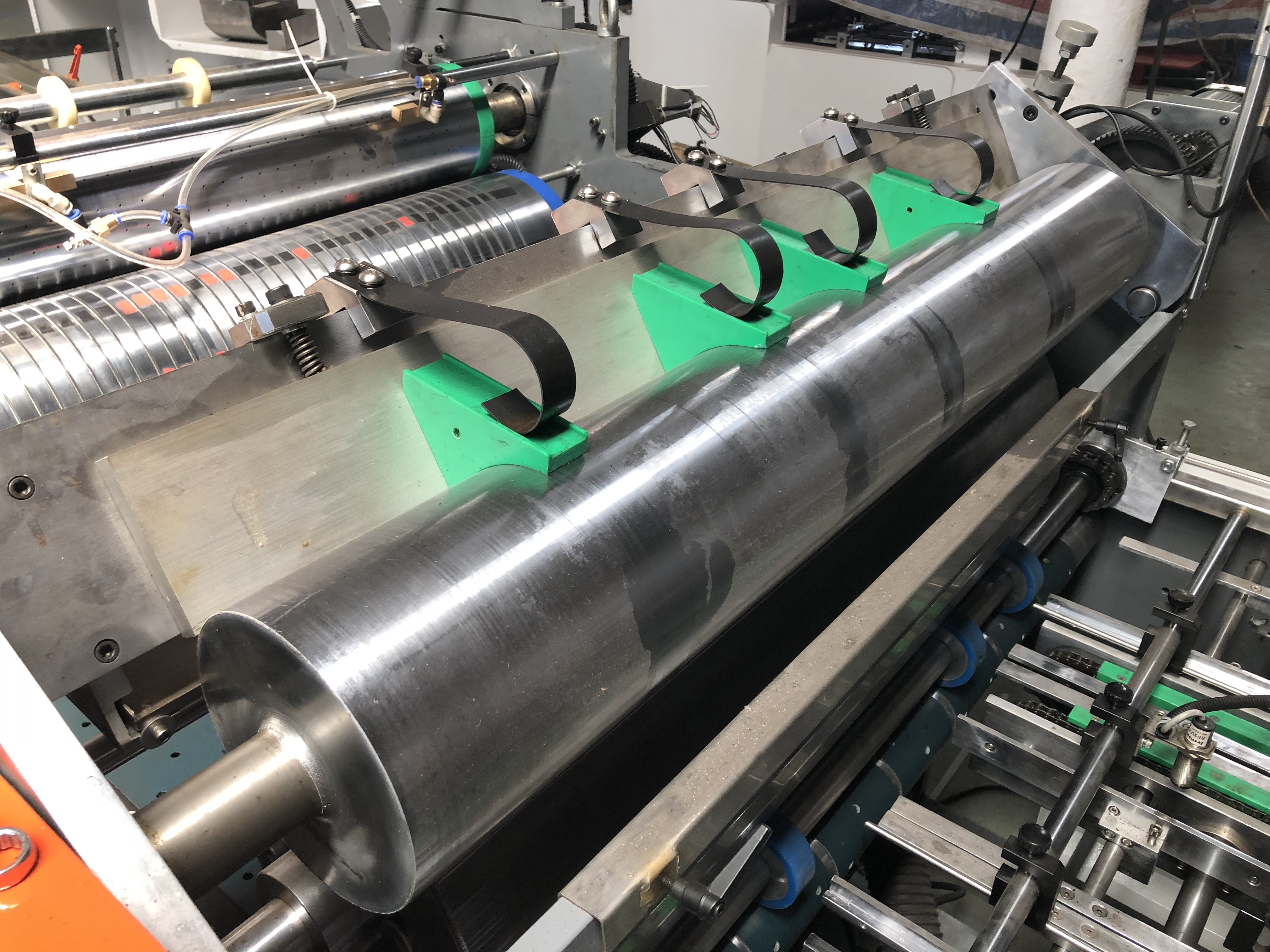

Glue part adopt flexo printing technology.We can adjust the place of glue on the paper without any stop.When missing paper,glue part will up in case of the glue leaves on the air sucking belt.

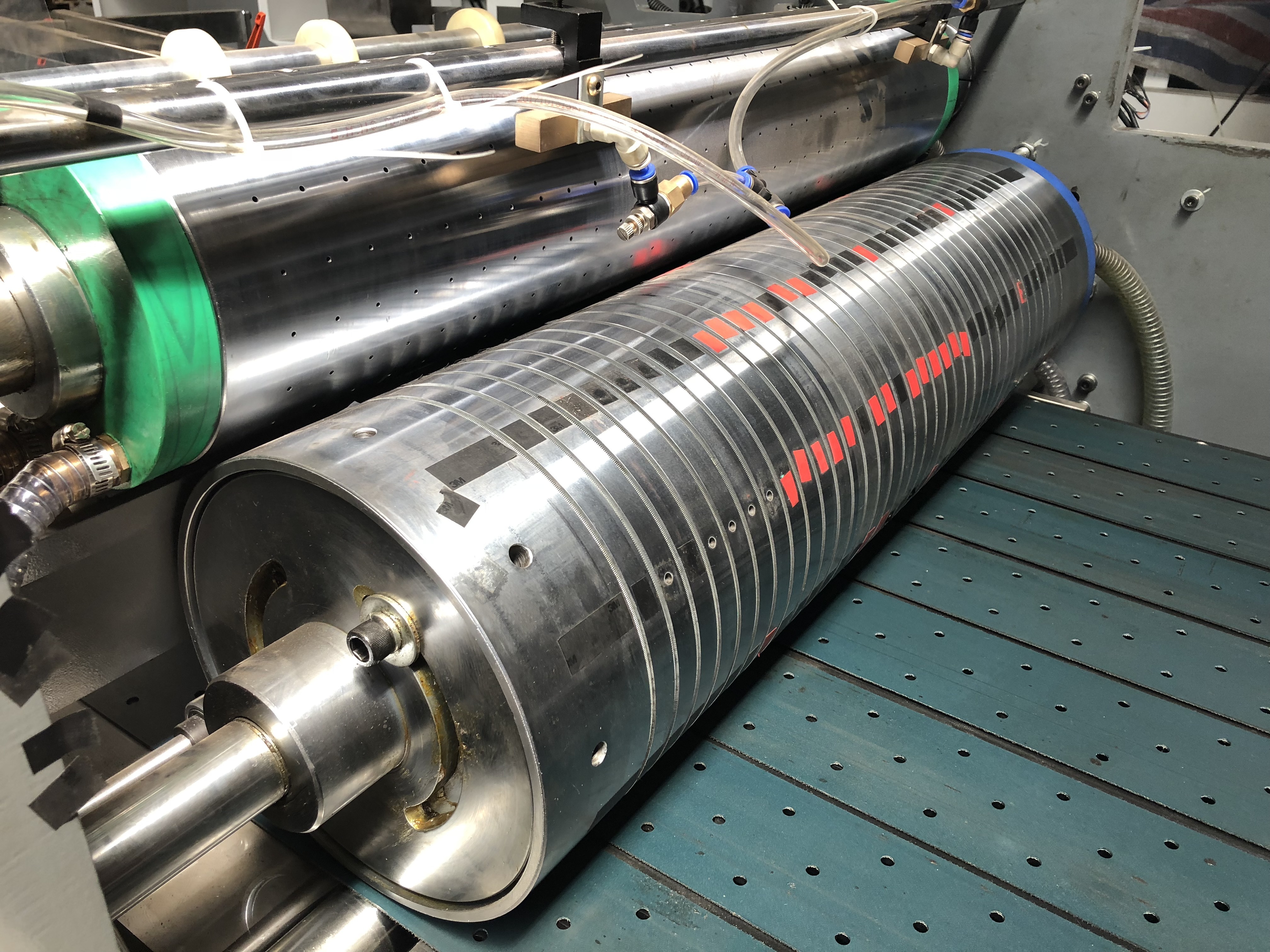

The film cutting part adopt roll-knife.It is controlled by servo motor so that we can adjust the film length without stop in the PLC.It also can adjust the place of film on the paper without stop.It has special knife to cut film for tissue box.
Applications
TC-1080B two line window patching machine is widely used in the window patching to the liquor box,gift box,tissue box,cosmetic box,toy box,etc.It can be used for window film cutting,creasing(for producing tissue box),gluing and patching of card.It can feed two paper in the same time.So the capacity will be double.
TC-1080B Fully Automatic Paper Box Double Channel Window Patching Machine Motor Engine 380V High-Capacity 40000 Pieces/Hour 8
TC-1080B Fully Automatic Paper Box Double Channel Window Patching Machine Motor Engine 380V High-Capacity 40000 Pieces/Hour 9
TC-1080B Fully Automatic Paper Box Double Channel Window Patching Machine Motor Engine 380V High-Capacity 40000 Pieces/Hour 10
TC-1080B Fully Automatic Paper Box Double Channel Window Patching Machine Motor Engine 380V High-Capacity 40000 Pieces/Hour 11
TC-1080B Fully Automatic Paper Box Double Channel Window Patching Machine Motor Engine 380V High-Capacity 40000 Pieces/Hour 12
TC-1080B Fully Automatic Paper Box Double Channel Window Patching Machine Motor Engine 380V High-Capacity 40000 Pieces/Hour 13
TC-1080B Fully Automatic Paper Box Double Channel Window Patching Machine Motor Engine 380V High-Capacity 40000 Pieces/Hour 14
TC-1080B Fully Automatic Paper Box Double Channel Window Patching Machine Motor Engine 380V High-Capacity 40000 Pieces/Hour 15
