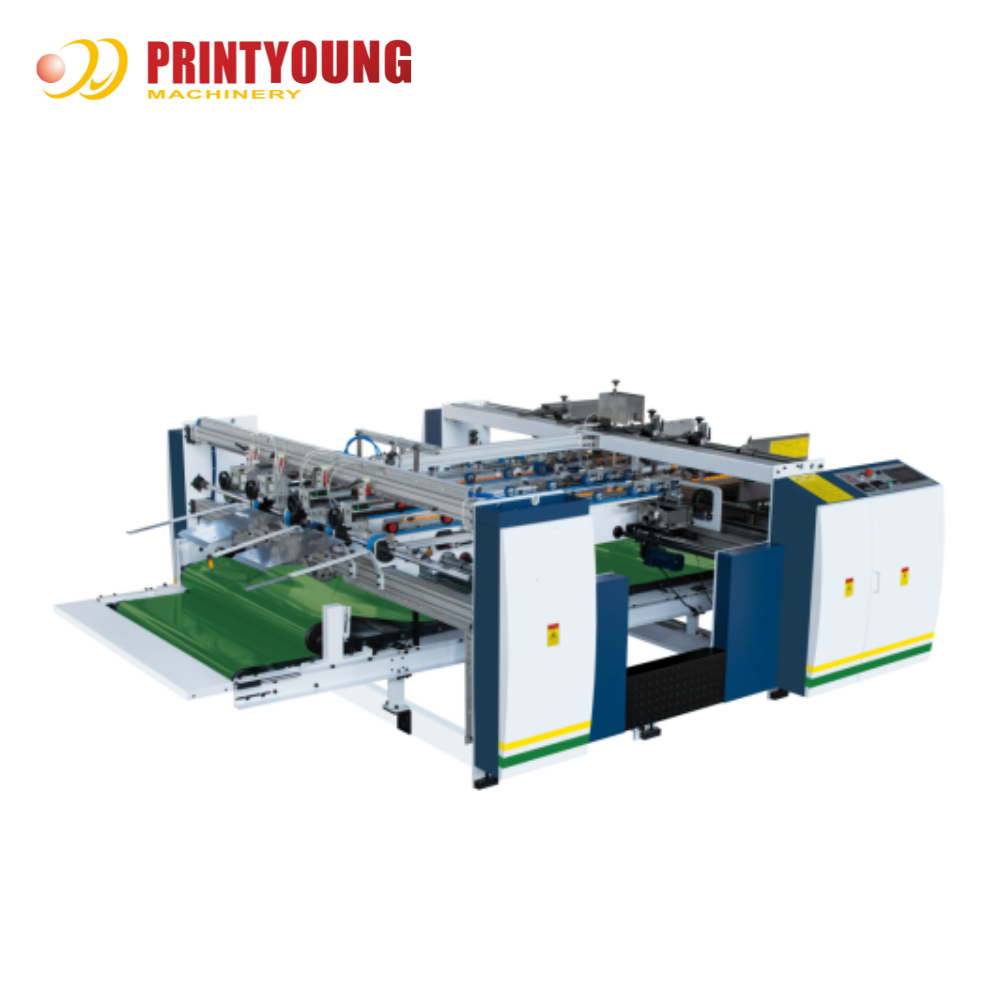

PRY-2900H Double Sheets Carton Box Folder Gluer Machine

PRY-2900H Double Sheets Carton Box Folder Gluer Machine
PRY-2900H Double Sheets Carton Box Folder Gluer Machine
बुनियादी जानकारी
उत्पत्ति के प्लेस: चीन
ब्रांड नाम: PRINTYOUNG
प्रमाणन: CE
मॉडल संख्या: PRY-2900H
न्यूनतम आदेश मात्रा: 1 सेट
मूल्य: US 26500 Set
पैकेजिंग विवरण: नमी-प्रूफ और शॉक-प्रूफ पैकेजिंग को अपनाता है जो लंबी दूरी की सड़क परिवहन और विभिन्न प्रकार की मौसम स
प्रसव के समय: 30 दिन
भुगतान शर्तें: एल/सी, टी/टी
आपूर्ति की क्षमता: प्रति माह 30 सेट/सेट
अब से संपर्क करें
अधिकतम। पेपर फ़ीड आकार (एकल चिप): 2900 * 1200 मिमी अधिकतम। पेपर फ़ीड आकार (डबल चिप): 1440 * 1200 मिमी
मिन। पेपर फ़ीड आकार: 500 * 280 मिमी कागज सीमा: वायुसेना नालीदार कागज और <8 मिमी पांच परतें कार्डबोर्ड
रफ़्तार: 0 ~ 3600 पीसी/घंटा उपकरण आयाम: 3960 * 3770 * 1500 मिमी
हीटर शक्ति: 2 किलोवाट शक्ति: 9 किलोवाट

PRY-2900H Double Sheets Carton Box Folder Gluer Machine 0
PRY-2900H Double Sheets Carton Box Folder Gluer Machine

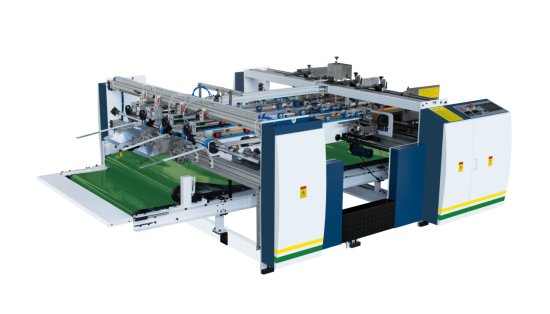

PRY-2900H Double Sheets Carton Box Folder Gluer Machine 1
Features
PRY-2900H can be use for AA,AB double chip and single chip foldering.This can replace the manual pasting reduce the intensity of labor.Compared with the traditional semi-automatic machine,it can save much labor.Due to the different working methods and compared with the above two process,it can also greatly improve product quality.
PRY-2900H high speed folder gluer our company combines the domestic and foreign market demand changes,comprehensive analysis of similar products all over the world and study on the basis of manufacturing and production processes,a new type of double-chip box-pasting machine has been developed,which is characterized by labor saving,high efficiency and excellent performance.
Technical Parameters
Max. Paper Feed Size (single chip)
2900 * 1200 mm
Max. Paper Feed Size (double chip)
1440 * 1200 mm
Min. Paper Feed Size
500 * 280 mm
Paper Range
A ~ F corrugated paper & <8mm five layers cardboard
Speed
0 ~ 3600 pcs/hr
Equipment Dimension
3960 * 3770 * 1500 mm
Heater Power
2 kw
Power
9 kw
Configuration
PRY-2900H Double Sheets Carton Box Folder Gluer Machine 2PRY-2900H Double Sheets Carton Box Folder Gluer Machine 3

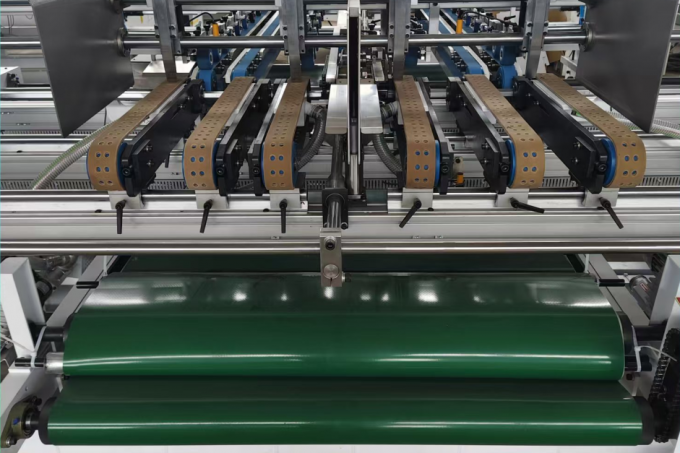

Suction paper feed part:We use the double wall panel with linear slider to support guide (Rockwell hardness of 58-62 degrees) and ensure structural stability.The suction wall panel also adopts the technology of surface grinding and machining center-high precision and good stability.

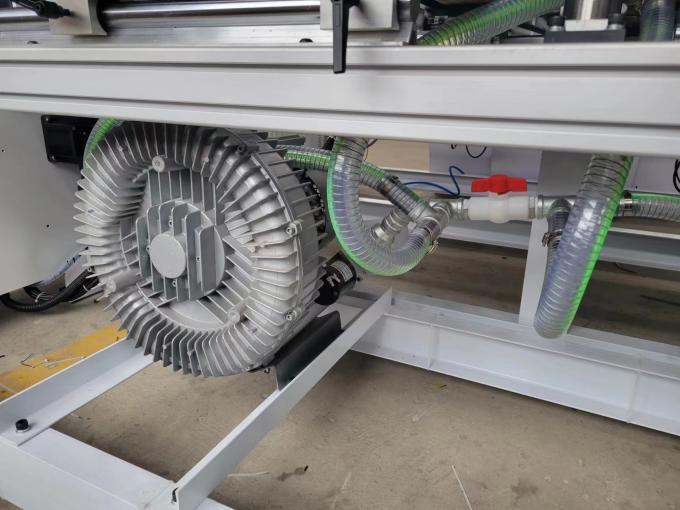

High-power high-pressure fan is used in the suction and paper feeding section of this machine,and the air volume on both sides of the machine is adjustable.The suction time can be adjust to the same on the normal box foldering process.While on the abnormal box foldering process the suction time can be adjust as the paper length required
PRY-2900H Double Sheets Carton Box Folder Gluer Machine 4PRY-2900H Double Sheets Carton Box Folder Gluer Machine 5

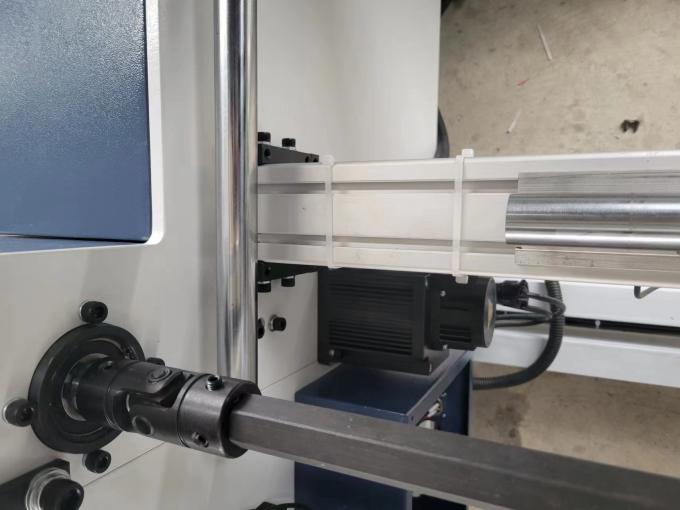

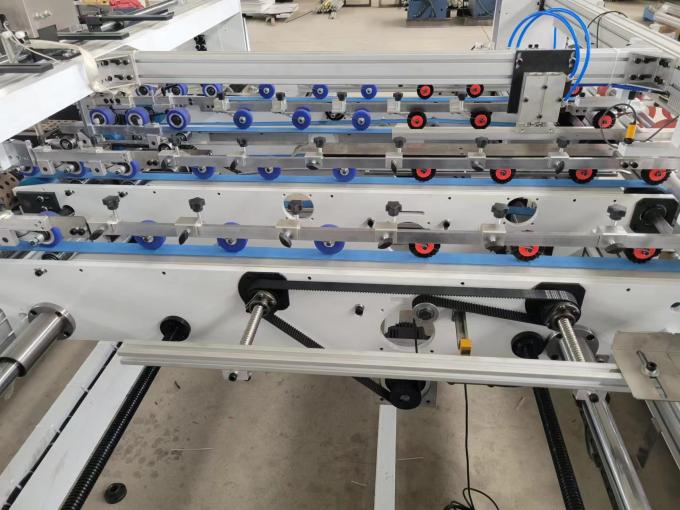

Four sets of servo motors equipped on this machine and double servo motors to ensure the high speed paper feeding stability and synchronicity.Chip A and B feeding size can be set separately to solve the different paper size issue.
Positioning and justify process use double servo with the ball screw flush to ensure the low-speed and high-speed bonding accuracy of consistency.
PRY-2900H Double Sheets Carton Box Folder Gluer Machine 6PRY-2900H Double Sheets Carton Box Folder Gluer Machine 7

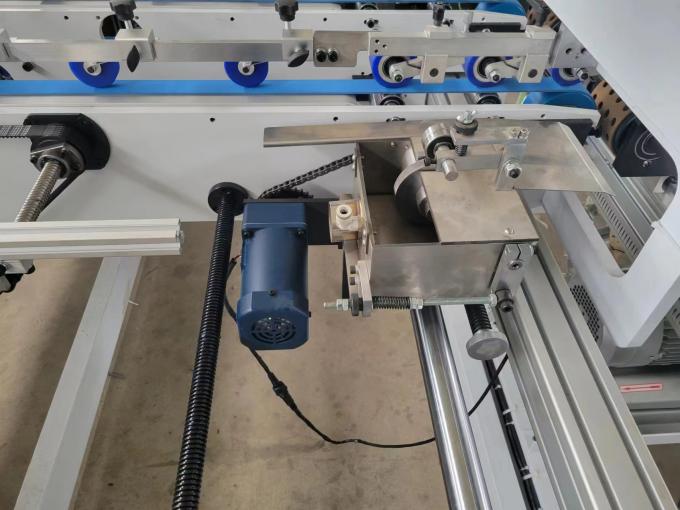

One-button adjust the middle paper feeding section panel and can be adjusted according to the width of the paper required.The intermediate paper-pressing mechanism can be used with aluminum frame,pulley structure (for glazing paper) or steel ball structure (for other products except glazing, no rebound)

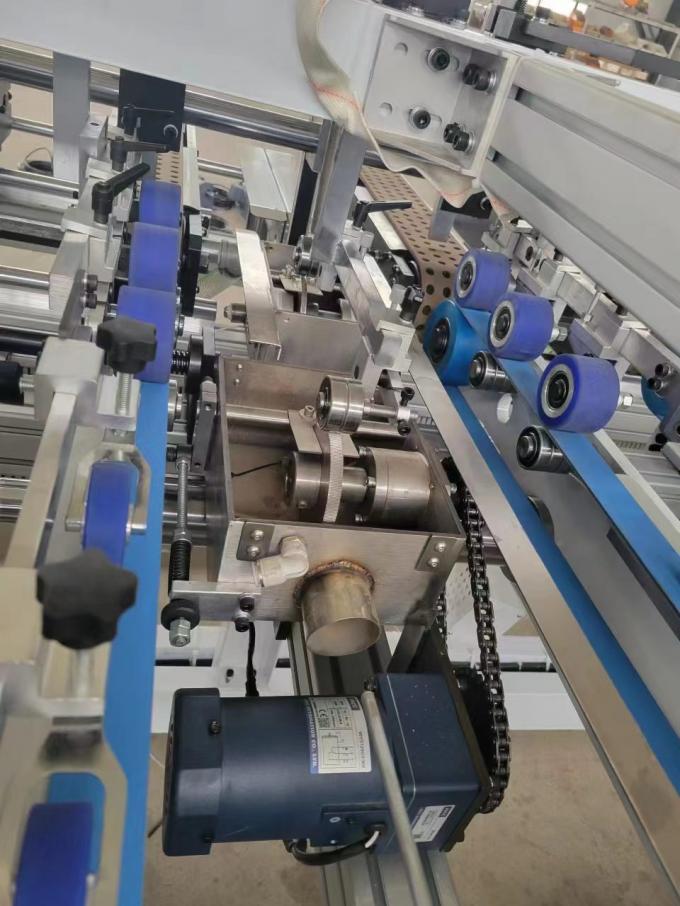

Glue coating system:Two channel middle coating glue,hot-melt adhesive and ordinary sealant to ensure the box 100% adhesive and no issue during the transportation.The middle glue feeding system adopts patent design,can be adjust according to the size of the product.
PRY-2900H Double Sheets Carton Box Folder Gluer Machine 8
The side cold glue box adopts synchronous adjustment with the sliding wall panel,saving time and no collision phenomenon,other manufacturers only use the single adjustment,time-consuming,easy to collision if the operation is not proper;the cold glue adopts automatic glue loading,it has the glue overflow preventing function which can avoid operators forgetting to add glue,or add too much glue;Glue heating adopts the a long life quickly heat unique heating plate,pre-melt equipped also.

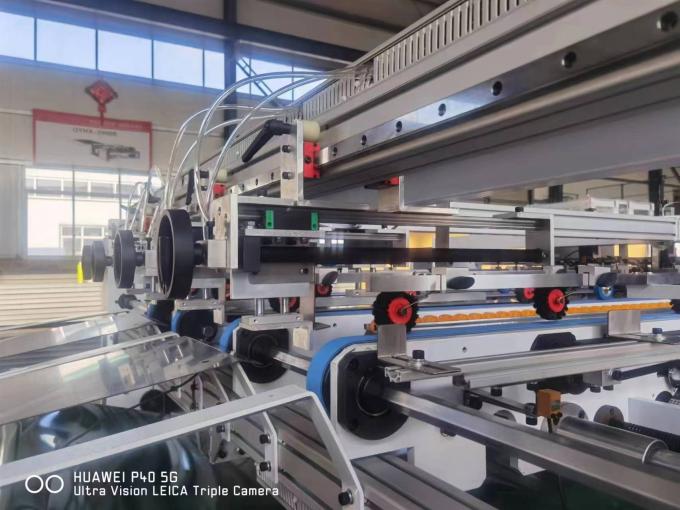

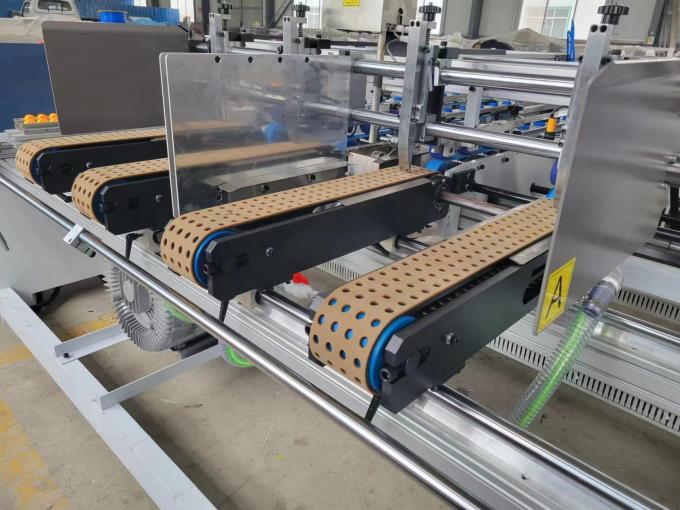

PRY-2900H Double Sheets Carton Box Folder Gluer Machine 9PRY-2900H Double Sheets Carton Box Folder Gluer Machine 10
Normal box and special box can be fixed with this machine.Front gauge positioning process is ourself designed.Dual-use bottom gauge, above gauge can be manually adjusted independently forward and backword which saved too much time for adjustment.
This machine is not only for double chip and single chip box produce but only also need 2 mins for double and single transfer.
Installation and Operation Attention

1.Installation and Wiring

1.1 10cm thick cement floor,but the ground flatness is required.
1.2 The transmission surface shall be kept about 1m away from the wall for operation and daily maintenance.
1.3 The input power is 380V AC,with zero line and ground wire.Please connect the wires according to the circuit diagram.Ground wire must be installed!!!
1.4 Before running,the input air pressure should be ≥0.6mpa.Boot method:Turn on the power switch,turn on the power knob on the control board.Insert the paper size suction length in the touch screen setting,then push the start button running button and air pump button one by one.Double check if all the movements and functions are in control,no abnormal,normal production start.
1.5 The temperature controller is the hot melt glue controller,set the temperature,choose the automatic way to work,the next day,artificial heating in advance,or choose automatic setting to heat in advance.

2.Operation Notice

2.1 The machine must be started after melting of hot melt glue.
2.2 According to the paper size and thickness to adjust side gauge baffle,suction belt position and feed knife pressure to ensure the paper feed continuity and stability.
2.3 Turn on the air pump papers transferred to the middle and adjust the transfer belt position and the side push gauge according the paper size.
2.4 Full filled the glue in the glue box,according to the glue and paper properties to adjust the glue control knob to meet the requirement.

3.Daily Maintenance

3.1 Each linkage should be lubricated regularly.
3.2 Each bearing should be butter lubricated regularly.
3.3 High temperature resistant grease should be added to the bearings at the hot paste barrel (temperature resistant to 250℃).
3.4 Wipe the machine regularly,especially before adjust the middle part need to wipe the hexagonal axis and the optical axis to avoid the dust accumulation impact.
3.5 Clean the cold past box regularly.
PRY-2900H Double Sheets Carton Box Folder Gluer Machine 11
PRY-2900H Double Sheets Carton Box Folder Gluer Machine 12
PRY-2900H Double Sheets Carton Box Folder Gluer Machine 13
PRY-2900H Double Sheets Carton Box Folder Gluer Machine 14
PRY-2900H Double Sheets Carton Box Folder Gluer Machine 15
PRY-2900H Double Sheets Carton Box Folder Gluer Machine 16
PRY-2900H Double Sheets Carton Box Folder Gluer Machine 17
